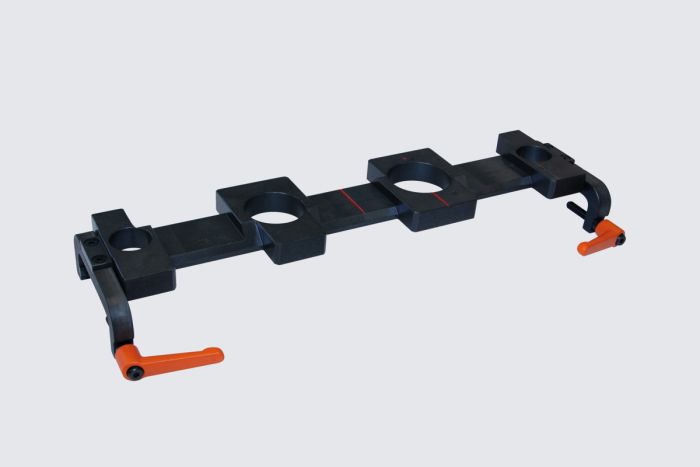

Assembly gauge for axle counter MRF SR-SFA 20

Rail drilling Jigs

Complete with base plate and all profile jaws with the exception of VST36

Article Number : MRF-SR-SFA-K

On order

PU: 1 pcs.
info
Share product

Product features

Using this assembly gauge, our drilling machines can also be used for drilling mounting holes for axle counters from ALCATEL, SIEMENS, FRAUSCHER and TIEFENBACHER, or for wheel sensors.

Due to the various SR-XX profile jaws, which are fastened on the SR-SKI base plate, this template is suitable for every type of rail and axle counter.

The distance gauge MRF SR-SFA facilitates drilling the following rail holes with precisely defined spacing:

  • 2 holes with spacing of 145 mm
  • 2 holes with spacing of 270 mm
  • 3 holes with spacing of 148 mm

Technical characteristics

Weight (kg)

6.5
