Images are exemplary.

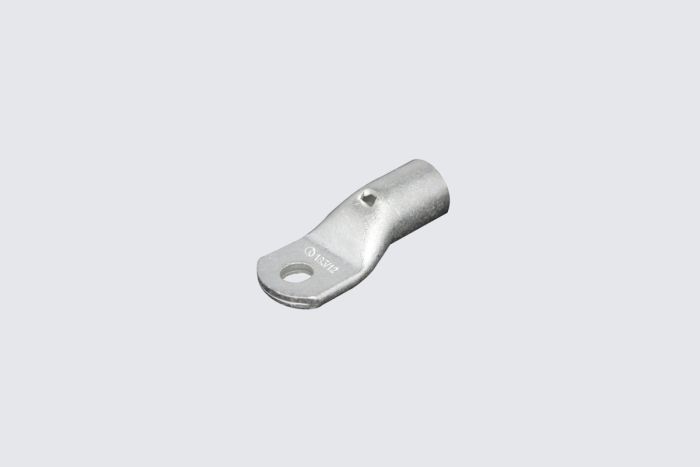

Copper tube crimping lug COS, 0.5-1.5mm²
For railway applications
Type A-MC, for copper conductors
Article Number : A03-M4C-OS
In stock
Dimensions
| L1 (mm) |
21.0 |
|---|---|
| L2 (mm) |
5.0 |
| L3 (mm) |
6.0 |
| B1 (mm) |
6.5 |
| d1 (Ø) |
1.8 |
| d2 (Ø) |
4.3 |
| Bolt (Ø) |
4.00 |
Technical characteristics
| Material |
ETP copper (CW008A) |
|---|---|
| Surface |
Eletrolytically tinned |
| Wire section (mm²) |
0.5 - 1.5 |
| Wire section thin wires (mm²) |
0.5 - 1.5 |
| Bolt (Ø) |
4.00 |
| Inspection hole |
Yes |
| Manufacturer |
Otto Schoch AG |
Download Product Information
Note
Each connector is marked as follows: Company logo, conductor cross-section (mm²) and pin Ø (mm)
