KDS-FP 2x10/24 BK

Flange plates

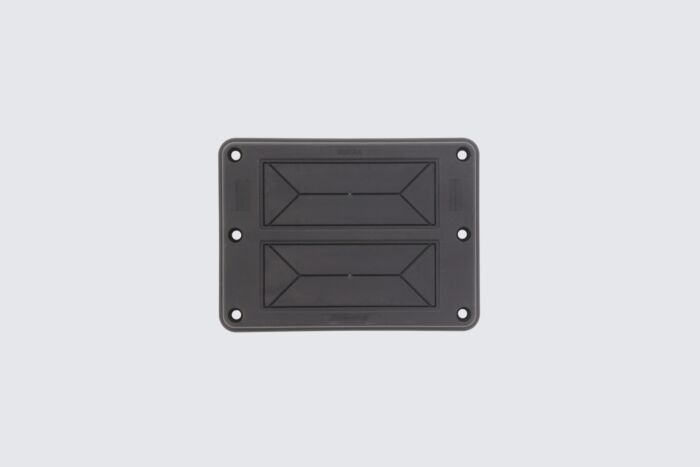

Cable entry flange plate with foamed-in seal, length: 165 mm, width: 123 mm

Article Number : 28660.4

Available from stock

RoHS II compliant
According UL LISTING 486A (File E489821)
Halogenfree
Polyamide PA6.6
Protection class IP66 according DIN EN 60529
PU: 1 pcs.
info
Share Easy Order

Dimensions

https://schochag.ch/Graphics/28660_4_01_Z_web.jpg
https://schochag.ch/Graphics/28660_4_02_Z_web.jpg
https://schochag.ch/Graphics/28660_4_03_Z_web.jpg
Width [mm]

123
Height [mm]

17.50
Construction height [mm]

10.50
Length [mm]

165
Cut-out length [mm]

5.5

Technical characteristics

Material

Polyamide PA6.6
Glass fibre reinforced

Yes
Halogen-free

Yes
Silicone-free

Yes
Sealing material

Polyurethane
Colour

Black
Mounting type

Screw
Number of screw holes

6
Fastening screw torque [Nm]

3
Working temperature min. [°C]

-40
Working temperature max. [°C]

+120
Flammability rating UL 94

V0
UL test standard

UL 508A
UL file number

E489821
Protection class EN 60529

IP66
RoHS-compliant

Yes
REACH-compliant

Yes
Manufacturer

CONTA-CLIP Verbindungstechnik GmbH

Download Product Information

Datasheet_28660.4.pdf
