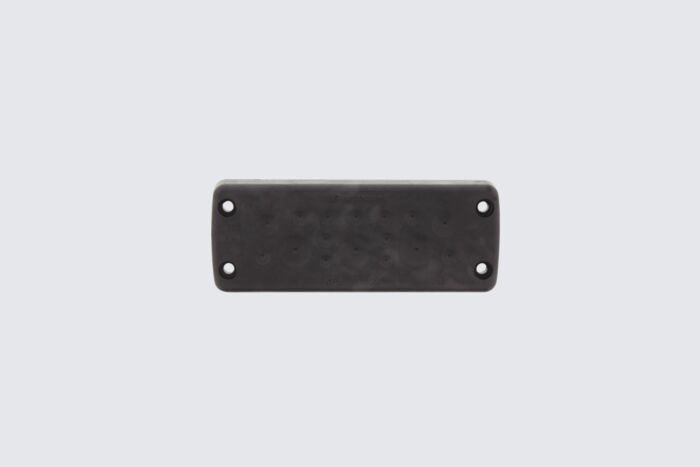

KES 16-1/24 BK
Cable entry plates, screw mounting
Cable entry with membrane for unassembled cables, Length: 147 mm, Width: 58 mm
Article Number : 28633.4
On order
Dimensions
| Width (mm) |
58 |
|---|---|
| Construction height (mm) |
14.50 |
| Length (mm) |
149.6 |
| Cut-out width (mm) |
36 |
| Cut-out length (mm) |
112 |
| Screw Ø (mm) |
5.50 |
Technical characteristics
| Material |
Polyamide PA6.6 |
|---|---|
| Glass fibre reinforced |
Yes |
| Halogen-free |
Yes |
| Silicone-free |
Yes |
| Sealing material |
TPE |
| Colour |
Black |
| Mounting type |
Screw |
| Number of screw holes |
4 |
| Fastening screw torque (Nm) |
3 |
| Working temperature min. (°C |
-40 |
| Working temperature max. (°C) |
+90 |
| Flammability rating UL 94 |
V0 |
| UL test standard |
UL 508A |
| UL file number |
E489821 |
| Protection class EN 60529 |
IP66 |
| Number of cables |
16 |
| Number of cables for cable diameter 12.0 - 16.2 mm |
3 |
| Number of cables for cable diameter 8.0 - 12.5 mm |
1 |
| Number of cables for cable diameter 5.5 - 10.5 mm |
1 |
| Number of cables for cable diameter 4.0 - 7.5 mm |
9 |
| Number of cables for cable diameter 3.2 - 6.3 mm |
2 |
| ROHS compliant |
Yes |
| REACH compliant |
Yes |
| Manufacturer |
CONTA-CLIP Verbindungstechnik GmbH |
