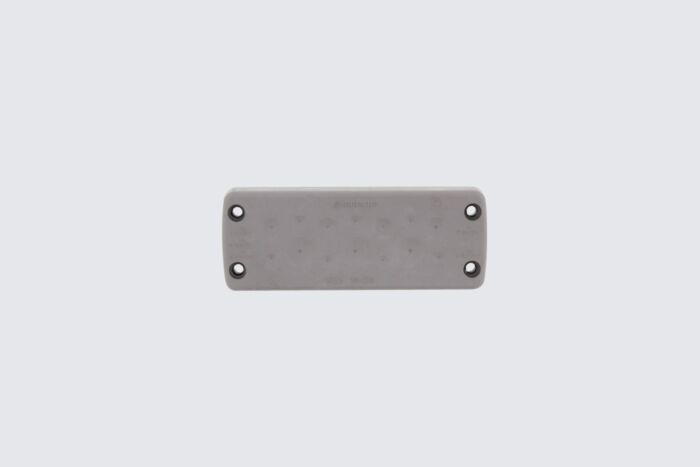

KES 14/24 GR

Cable entry plates, screw mounting

Cable entry with membrane for unassembled cables, Length: 147 mm, Width: 58 mm

Article Number : 28631.6

In stock

RoHS II compliant
According UL LISTING 486A (File E489821)
Polyamide PA6.6
Halogenfree
Protection class IP66 according DIN EN 60529
PU: 10 pcs.
info
Share product

Dimensions

https://schochag.ch/Graphics/28631_6_01_Z_web.jpg
https://schochag.ch/Graphics/28631_6_02_Z_web.jpg
https://schochag.ch/Graphics/28631_6_03_Z_web.jpg
Width (mm)

58
Construction height (mm)

14.50
Length (mm)

149.6
Cut-out width (mm)

36
Cut-out length (mm)

112
Screw Ø (mm)

5.50

Technical characteristics

Material

Polyamide PA6.6
Glass fibre reinforced

Yes
Halogen-free

Yes
Silicone-free

Yes
Sealing material

TPE
Colour

Grey
Mounting type

Screw
Number of screw holes

4
Fastening screw torque (Nm)

3
Working temperature min. (°C

-40
Working temperature max. (°C)

+90
Flammability rating UL 94

V0
UL test standard

UL 508A
UL file number

E489821
Protection class EN 60529

IP66
Number of cables

14
Number of cables for cable diameter 12.0 - 16.2 mm

3
Number of cables for cable diameter 8.0 - 12.5 mm

1
Number of cables for cable diameter 5.5 - 10.5 mm

3
Number of cables for cable diameter 4.0 - 7.5 mm

3
Number of cables for cable diameter 3.2 - 6.3 mm

5
ROHS compliant

Yes
REACH compliant

Yes
Manufacturer

CONTA-CLIP Verbindungstechnik GmbH

Download Product Information

Datasheet_28631.6.pdf
