Feeder unit for the PC-65

Accessories and add-ons for crimping machines

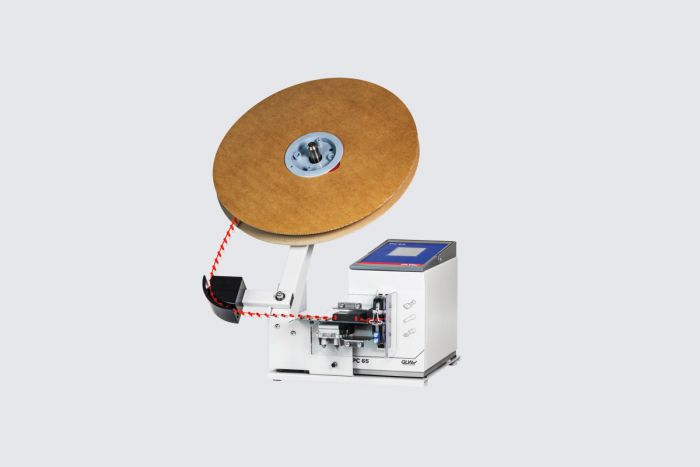

Feeder unit for the PC-65

Article Number : TF-65

Available from stock

PU: 1 pcs.
info
Share Easy Order

Product features

To process insulated stripping material, the PC-65 can be extended with the TF-65 feeding unit.

This is timesaving compared to manual crimping and assures a high process reliability in the process. Used together with Cembre material this, is a perfect combination for even more efficient work.

Technical characteristics

Cross-section range [mm² / AWG]

0.25 - 6.0 mm²
Cycle time [s]

2s
Weight [kg]

2.6 kg
LxHxW [mm]

387 x 418 x 422 (spool arm folded out)

Download Product Information

Datasheet_TF-65.pdf

Note

Matching contacts, matrices and feeders must be requested separately.

Complementary Products

Accessory (9)
Crimping machine, Conveyor unit for partially insulated contacts 0.25-1.5mm², red, Cembre , Usable with the TF-65 and the PC-65
Conveyor unit for partially insulated contacts 0.25-1.5mm², red, Cembre
Usable with the TF-65 and the PC-65
Article Number : GLW-010539
Crimping machine, Conveyor unit for partially insulated contacts 1.5-2.5mm², blue, Cembre , Usable with the TF-65 and the PC-65
Conveyor unit for partially insulated contacts 1.5-2.5mm², blue, Cembre
Usable with the TF-65 and the PC-65
Article Number : GLW-010540
Crimping machine, Conveyor unit for partially insulated contacts 4-6mm², yellow, Cembre , Usable with the TF-65 and the PC-65
Conveyor unit for partially insulated contacts 4-6mm², yellow, Cembre
Usable with the TF-65 and the PC-65
Article Number : GLW-010541
Crimping machine, Conveyor unit for fully insulated contacts 0.25-1.5mm², red, Cembre , Usable with the TF-65 and the PC-65
Conveyor unit for fully insulated contacts 0.25-1.5mm², red, Cembre
Usable with the TF-65 and the PC-65
Article Number : GLW-010744
Crimping machine, Conveyor unit for fully insulated contacts 1.5-2.5mm², blue, Cembre , Usable with the TF-65 and the PC-65
Conveyor unit for fully insulated contacts 1.5-2.5mm², blue, Cembre
Usable with the TF-65 and the PC-65
Article Number : GLW-010814
Crimping machine, Conveyor unit for fully insulated contacts 4-6mm², yellow, Cembre , Usable with the TF-65 and the PC-65
Conveyor unit for fully insulated contacts 4-6mm², yellow, Cembre
Usable with the TF-65 and the PC-65
Article Number : GLW-010816
Die set for insulated contacts 0.25-1.5mm², red, Cembre , Usable for the EC-65 and PC-65
Die set for insulated contacts 0.25-1.5mm², red, Cembre
Usable for the EC-65 and PC-65
Article Number : GLW-010625
Die set for insulated contacts 1.5-2.5mm², blue, Cembre , Usable for the EC-65 and PC-65
Die set for insulated contacts 1.5-2.5mm², blue, Cembre
Usable for the EC-65 and PC-65
Article Number : GLW-010904
Die set for insulated contacts 4-6mm², yellow, Cembre , Usable for the EC-65 and PC-65
Die set for insulated contacts 4-6mm², yellow, Cembre
Usable for the EC-65 and PC-65
Article Number : GLW-010905
